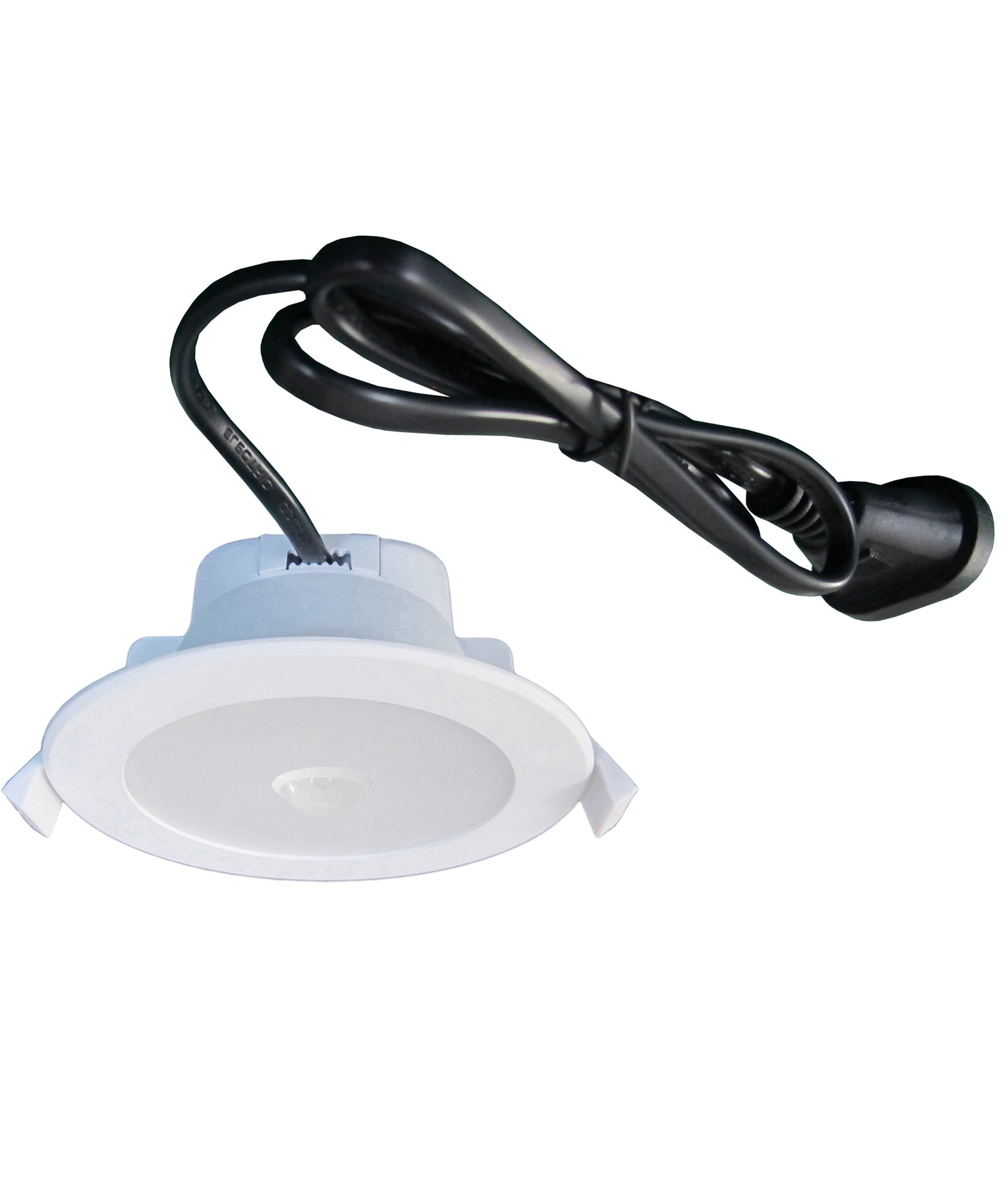

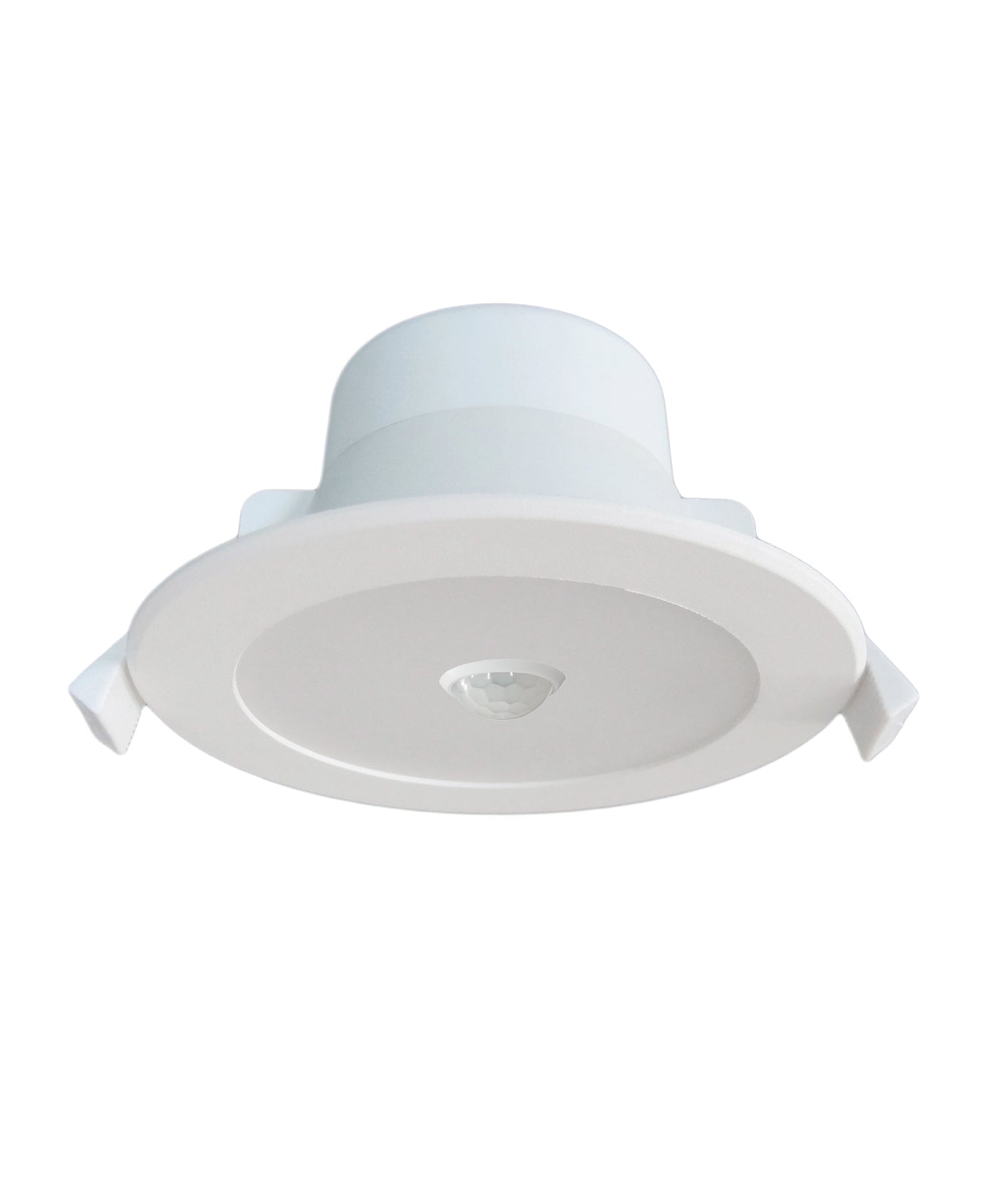

NOVATRIS: LED Tri-CCT Motion Sensor Recessed Downlight IP44

• Input voltage: 220 - 240V at 50Hz
• Comes with an in - built constant current driver
• Housing and heatsink are made of plastic and aluminium
• Features SMD2835 LED chips
• Switchable color temperatures: 3000K, 4000K, 5000K

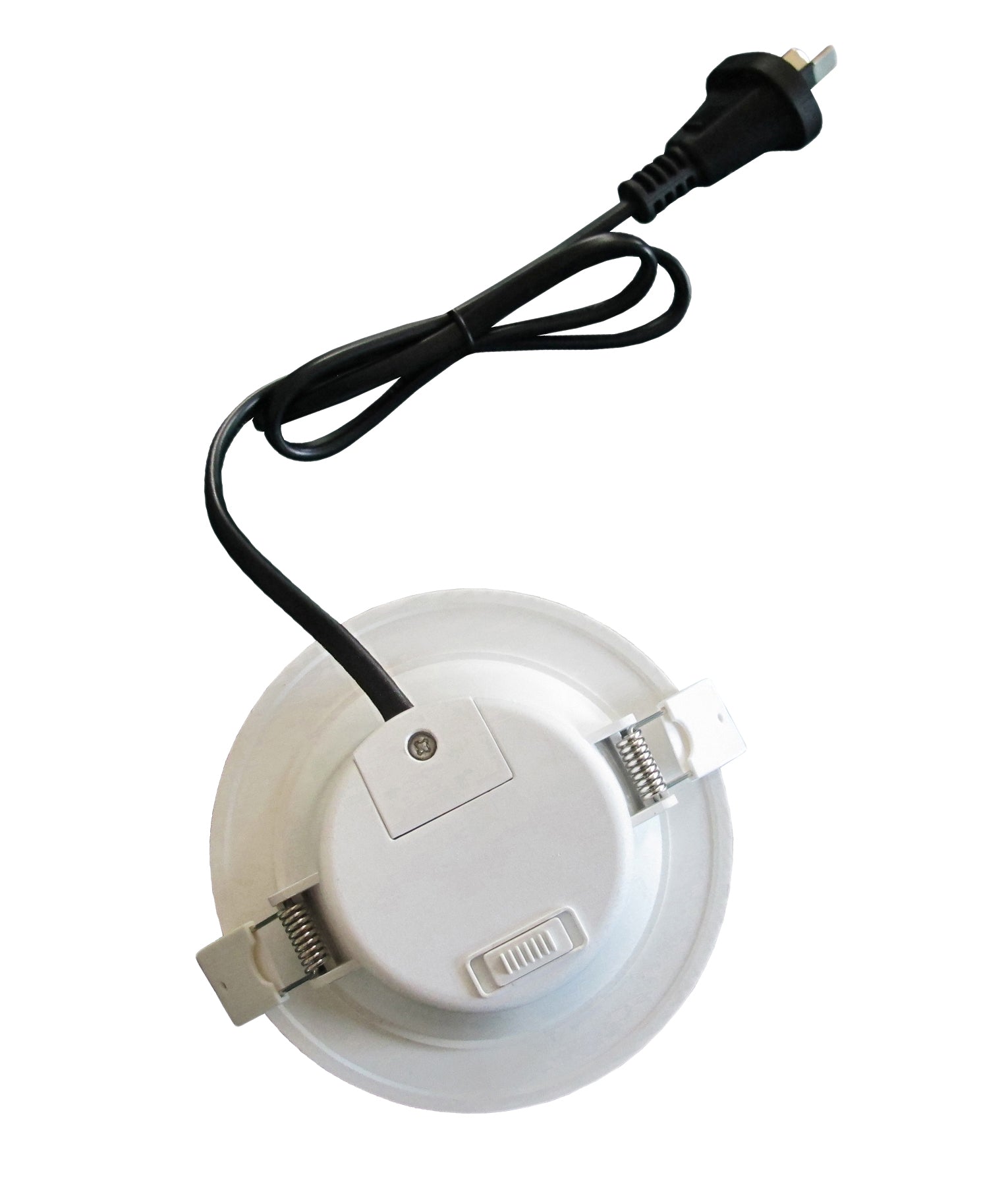

• Equipped with a rear switch
• Power factor of 0.9
• CRI of 80
• 1.0m flex and plug
• Operates in ambient temperatures from - 20 to 40°C
• Not suitable for dimming but good for 2 - way switching
• IP44 rated for protection
• Double insulated for safety
• IC - 4 rated
• 3 - year replacement warranty

*Must be installed by a licensed electrician. Installation instructions are in each product box.

Sensor Technical Spec:

• PIR sensor type
• Low power consumption: <0.5W
• Best installed at a height of 1.8 - 2.5m
• 360° detection angle
• Motion detection speed of 1.5m/s
• Time delay of 70 ± 10s
• UV resistant
• No manual override

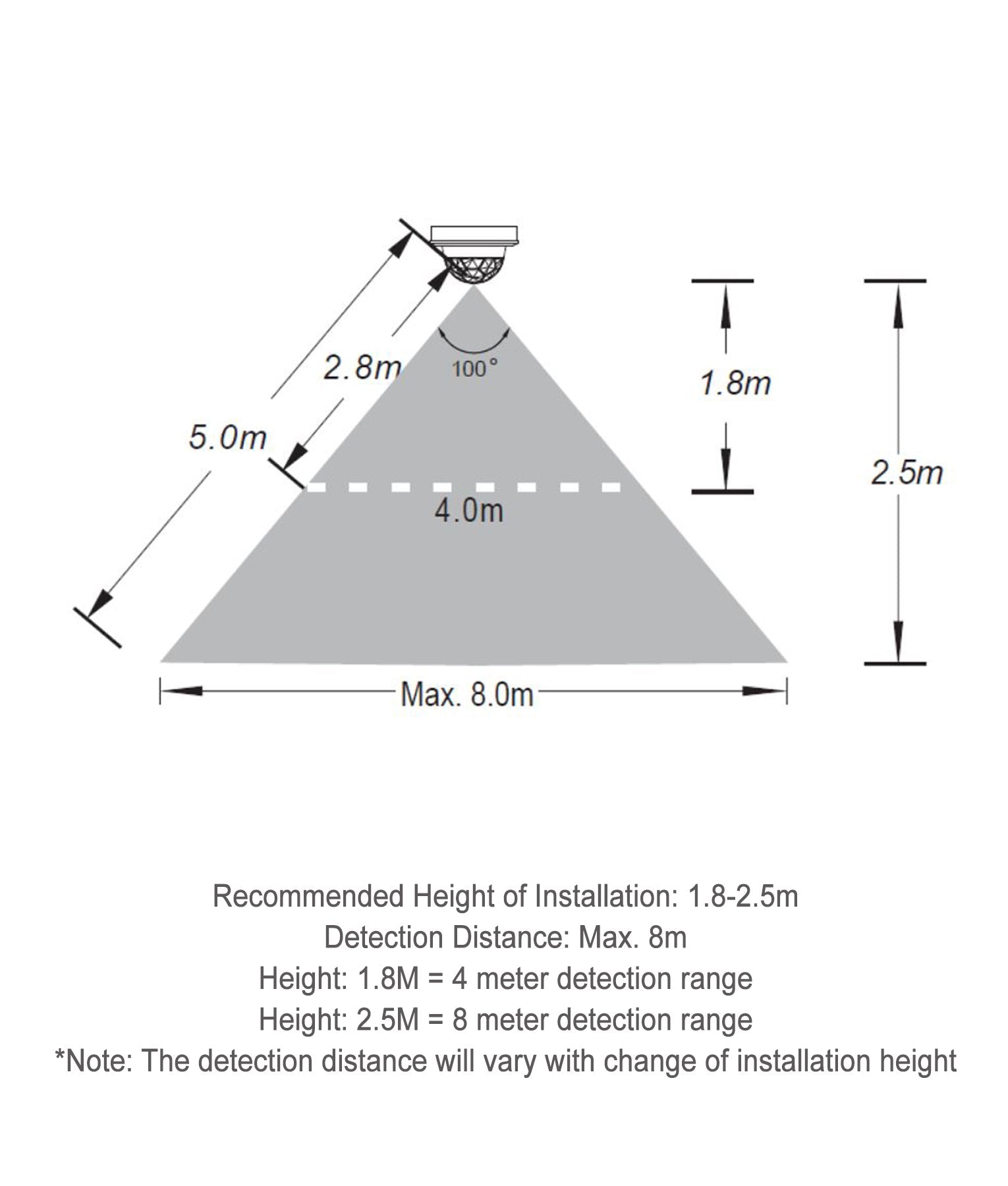

• Recommended installation height: 1.8 - 2.5m
• Max detection distance: 8m (varies with installation height)
• At 1.8m height, 4m detection range; at 2.5m height, 8m detection range
• *Note: Detection distance changes with installation height

This NOVATRIS LED downlight is easy to use. First, make sure to have it installed by a licensed electrician as per the instructions in the box. Once installed, it will automatically sense motion within its detection range. You can switch between different color temperatures using the rear switch. The light is designed to work in ambient temperatures from - 20 to 40°C. Keep in mind that it's not suitable for dimming but works well with 2 - way switching. For the sensor, it has a 360° detection angle and a motion detection speed of 1.5m/s. The time delay is around 70 seconds (give or take 10 seconds). The detection distance depends on the installation height. For best results, install it between 1.8 and 2.5 meters high. To maintain the light, keep it clean and avoid exposing it to extreme conditions. It comes with a 3 - year replacement warranty, so if there are any issues, you can get it replaced.
